gridmd.h File Reference

Classes for GridMD workflow interface. More...

#include <stdint.h>
#include "wxinc.h"
#include <wx/cmdline.h>
#include "refobj.h"
#include "logexc.h"
#include "seqpack.h"
#include "jobmngr/pbsmngr.h"
#include "jobmngr/plinkshell.h"
#include "jobmngr/unixshell.h"

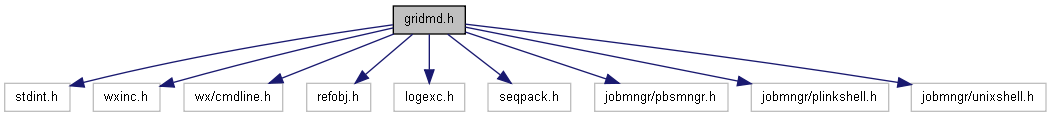

Include dependency graph for gridmd.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	gmHardLink
	Category structure for indicating the hard link to gmManager::mark_node() function. More...
struct	gmDataLink< data_t >
	Category structure for indicating the data link to gmManager::mark_node() function. More...
struct	gmResourceDescr
	Resourse description for gmManager. More...
class	gmSelector
	Class representing a collection of nodes/ports selected using differemt categories: indicating integer ID of a node indicating regular expression matching the symbolic name of a node indicating a node category by using node selector flags gmNODES. More...
class	gmManager
	Main interface class to access workflow functions. More...
Namespaces
namespace	gridmd
	Namespace for global GridMD functions.
Defines
#define	MAX_RES_TYPES   1
	The number of defined resource types.
#define	MAX_SHELL_TYPES   2
	The number of defined shell types.
#define	MAX_RECURSION   10
	Maximum allowed number of recursions in calls to gridmd_main.
Enumerations
enum	gmNODES {   gmNODE_NONE = -1, gmNODE_ALL = -2, gmNODE_PREV = -3, gmNODE_NOINPUTS = -4,   gmNODE_NOOUTPUTS = -5, gmNODE_AUTO = -6 }
	Node selector flags for use in linking functions together with node ids (see also gmSelector). More...
enum	gmEXE_MODES
	Execution modes.
enum	gmMODES { gmMODE_LOCAL = 0, gmMODE_MANAGER = 0x1, gmMODE_CONSTRUCT = 0x1, gmMODE_WORKER = 0x2 }
	gmManager operation modes (bit flags) More...
enum	gmLINKS { gmLINK_HARD = 0x1, gmLINK_DATA = 0x2, gmLINK_PROC = 0x4, gmLINK_LOCAL = 0x8 }
	Types of links used to connect GridMD nodes. More...
enum	gmGV_FIELDS {   gmGV_NODENAME = 0x1, gmGV_LINKNAME = 0x2, gmGV_DESTNAME = 0x4, gmGV_NODENUM = 0x8,   gmGV_NODESTATE = 0x10, gmGV_THREAD = 0x20, gmGV_CLUSTER = 0x40, gmGV_ALL = 0xfffffff }
	Fields to output in the graph file for Graphviz visualization. More...
enum	gmTMP_FILES { gmFILES_LOCAL = 0x1, gmFILES_CLEANUP = 0x2 }
	Bit flags to indicate temporary files settings in gmManager::set_link_files(). More...
enum	gmRESOURCE_TYPES { gmRES_PBS }
	Resource broker types. More...
enum	gmSHELL_TYPES { gmSHELL_PLINK = 0, gmSHELL_UNIX = 1 }
	Shell types. More...
enum	gmNAME_SORT { gmSEL_ALL = -1, gmSEL_NEAREST = -2 }
	Treatement of nodes with duplicated names for gmSelector. More...
Functions
int	gridmd_main (int argc, char **argv)
	User function to work with gridmd.
template<class T >
bool	dump_to_file (FILE *f, const T *ptr)
	Template function that performs the datatype packing into a file.
template<class T >
bool	restore_from_file (FILE *f, T *ptr)
	Template function that performs the datatype reading from a file.
int	gridmd::begin_distributed ()
	gmManager::begin_distributed() called for the global gmExperiment
int	gridmd::end_distributed ()
	gmManager::end_distributed() called for the global gmExperiment
template<class link_type >
int	gridmd::mark_node (const string &name, gmSelector input=gmNODE_PREV, const link_type &t=gmHardLink(), int srcport=-1)
	See gmManager::mark_node().
int	gridmd::mark_node (const string &name, gmSelector input=gmNODE_PREV)
	See gmManager::mark_node().
template<class link_type >
int	gridmd::node (const string &name, gmSelector input=gmNODE_PREV, const link_type &t=gmHardLink(), int srcport=-1)
	See gmManager::mark_node().
int	gridmd::node (const string &name, gmSelector input=gmNODE_PREV)
	See gmManager::mark_node().
int	gridmd::get_curnode ()
	See gmManager::get_curnode().
template<class data_t >
int	gridmd::link (gmNodeID from, gmNodeID to, int srcport=-1)
	See gmManager::link().
template<class data_t >
data_t &	gridmd::node_output (int portid=0)
	See gmManager::node_output().
template<class data_t >
const data_t &	gridmd::node_input (int portid=0)
	See gmManager::node_input().
int	gridmd::process_cur_node ()
	See gmManager::process_cur_node().
int	gridmd::gridmd_init (int argc, char **argv)
	See gmManager::init().
Variables
const char *	gmResTypeName []
	Type names corresponding to resource types gmRESOURCE_TYPES.
const char *	gmShellTypeName []
	Type names corresponding to shell types gmSHELL_TYPES.
gmManager	gmExperiment
	Main experiment object.

---

Detailed Description

Classes for GridMD workflow interface.

---

Enumeration Type Documentation

enum gmGV_FIELDS

Fields to output in the graph file for Graphviz visualization.

Enumerator:

gmGV_NODENAME	node name
gmGV_LINKNAME	link (file) name
gmGV_DESTNAME	link destination name
gmGV_NODENUM	node number
gmGV_NODESTATE	node state
gmGV_THREAD	execution thread
gmGV_CLUSTER	index of hard-linked cluster
gmGV_ALL	all

enum gmLINKS

Types of links used to connect GridMD nodes.

Enumerator:

gmLINK_HARD	Hard (logical) link.
gmLINK_DATA	Data link.
gmLINK_PROC	Process link.
gmLINK_LOCAL	Hard link to intermediate 'finish' node (does not require simultaneous node processing).

enum gmMODES

gmManager operation modes (bit flags)

Enumerator:

gmMODE_LOCAL	Default setting, the modes are automatically selected in course of operation.
gmMODE_MANAGER	Same as gmMODE_CONSTRUCT.
gmMODE_CONSTRUCT	Construction mode in which the graph is assembled.
gmMODE_WORKER	Worker mode for execution of the worker nodes.

enum gmNAME_SORT

Treatement of nodes with duplicated names for gmSelector.

Enumerator:

gmSEL_ALL	Select all nodes including thouse with duplicated names.
gmSEL_NEAREST	Between the nodes with duplicated names select the nearest in id to the current node.

enum gmNODES

Node selector flags for use in linking functions together with node ids (see also gmSelector).

Enumerator:

gmNODE_NONE	No nodes selected.
gmNODE_ALL	All available nodes.
gmNODE_PREV	Previous node.
gmNODE_NOINPUTS	All nodes currently with no input links.
gmNODE_NOOUTPUTS	All nodes currently with no output links.
gmNODE_AUTO	Automatic selection performed by implementation.

enum gmRESOURCE_TYPES

Resource broker types.

Enumerator:

gmRES_PBS

Cluster with installed PBS-compatible queueing system.

enum gmSHELL_TYPES

Shell types.

The shell is used to access the resource broker remotely. Not all combinations of (resource,shell) are valid within gmResourceDescr (see gmJobManager documentation). gmManager::add_resource() returns <0 for invalid combinations.

Enumerator:

gmSHELL_PLINK	Windows plink (ssh client), requires plink.exe and pscp.exe available from PuTTy.
gmSHELL_UNIX	Plain unix command line (no ssh) to access the resource at local machine.

enum gmTMP_FILES

Bit flags to indicate temporary files settings in gmManager::set_link_files().

Enumerator:

gmFILES_LOCAL	Create link files even for local mode.
gmFILES_CLEANUP	Cleanup all temporary link files after all connected nodes are processed.

---

Function Documentation

template<class T >

bool dump_to_file	(	FILE *	f,
		const T *	ptr
	)

Template function that performs the datatype packing into a file.

The function is used when transferring link data from/to a node. The existing implementation (memory dump) is valid for all simple plain data types. Has to be specialized for user types requiring any special procedures.

int gridmd_main	(	int	argc,
		char **	argv
	)

User function to work with gridmd.

This function must be explicitly defined by the user and explicitly called from the user code. The command line prameters argc and argv are usually redirected from main() and used for calling gmManager::init(). See description of gmManager::init() for the list of GridMD-specific command line parameters.

template<class T >

bool restore_from_file	(	FILE *	f,
		T *	ptr
	)

Template function that performs the datatype reading from a file.

The function is used when transferring link data from/to a node. The existing implementation (copy form file to memory) is valid for all simple plain data types. Has to be specialized for user types requiring any special procedures.
